Link’s CAN Lambda is an easy to use CAN module that provides digital wideband sensor control via CAN bus and is compatible with leading aftermarket ECUs.

If using the CAN Lambda with a G4+/G4X PlugIn ECU use a Link CANPCB cable to access the CAN port on the PlugIn PCB and a Link CANF field insertable CAN plug.

Specifications

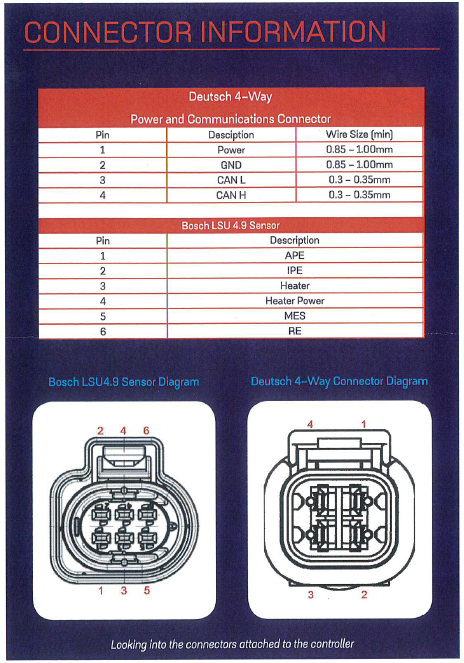

1 x 4 pin male DTM connector (power/CAN)
1 x 6 pin mating connector for LSU 4.9 Lambda sensor
Dimensions
Enclosure 60 x 26 x 15mm
Lead length 170mm
Weight 70g

Input Voltage
Controller 7.5 - 20 V
Sensor 10.8 - 16.5 V

Input Current
Controller 100 mA
Sensor Heater 8 A

Operating Temp -20 - 100 deg.C
Sensor Bosch LSU4.9
Sensing Range 0.67 - 10 lambda

CAN Frequency 1Mb/s,500kb/s,250kb/s,125kb/s

Link’s CAN Lambda is an easy to use CAN module that provides digital wideband sensor control via CAN bus and is compatible with leading aftermarket ECUs.

If using the CAN Lambda with a G4+/G4X PlugIn ECU use a Link CANPCB cable to access the CAN port on the PlugIn PCB and a Link CANF field insertable CAN plug.

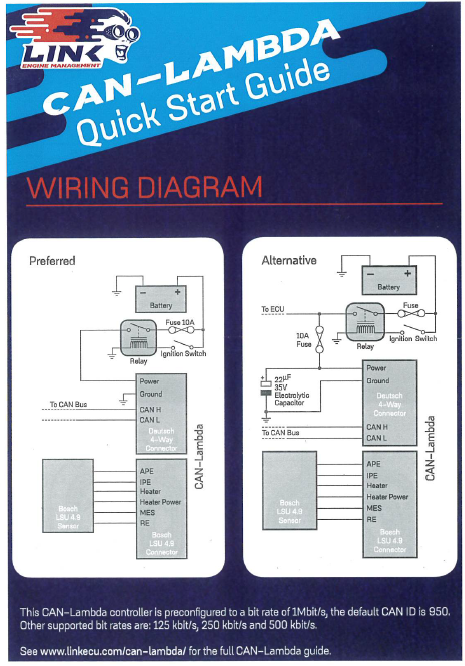

Please note proper CAN protocol must be followed. See manual below for guidance.
